GEEKOM A9 Mega: AMD Ryzen AI Max 395 in mini PC format, high standards, little scope

The GEEKOM A9 Mega is a compact desktop PC in a mini PC form factor based on the latest AMD Ryzen AI Max platform. According to the manufacturer, the system is aimed at professional application scenarios where high computing power, integrated graphics performance and local AI acceleration are required in a space-saving housing.

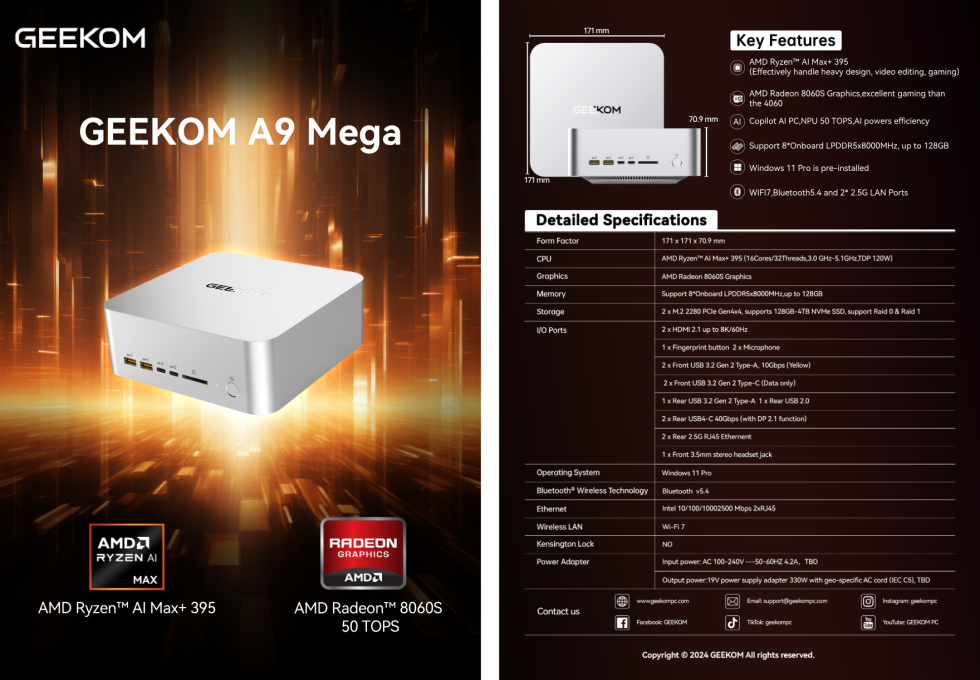

The housing measures 171 × 171 × 70.9 millimeters and thus remains within the classic mini PC category. Despite its compact dimensions, the system is equipped with a powerful APU with a thermal power dissipation of 120 watts TDP. The PDF does not contain any information on the internal cooling design or the continuous load capacity.

Processor and computing platform

The AMD Ryzen AI Max 395 is used in the A9 Mega. The processor has 16 CPU cores and 32 threads and, according to the manufacturer, achieves a maximum clock frequency of up to 5.1 GHz. The APU also integrates a dedicated AI acceleration unit with a specified performance of 50 TOPS. This is intended for local AI workloads, inference-based applications and AI-supported software.

Graphics and display output

The integrated graphics solution is identified as AMD Radeon 8060S Graphics. It is used for classic desktop applications as well as for more graphics-intensive workloads such as video processing or GPU-accelerated applications.
Two HDMI 2.1 ports are available for image output, which support a resolution of up to 8K according to the specification. A USB4 Type-C port with DisplayPort 2.1 function is also integrated.

Working memory

The main memory is designed as an onboard LPDDR5X-8000 and is permanently soldered. According to the manufacturer, the system supports a maximum memory capacity of up to 128 GB. Replaceable SO-DIMM modules are not provided. Information on the standard configuration or possible variants is not included in the PDF.

Mass storage

Two M.2 2280 slots with PCIe Gen4 connection are available for mass storage. The system supports a total capacity of up to 12 TB as well as RAID 0 and RAID 1 configurations. The specific implementation of the RAID functionality, for example via firmware or operating system, is not explained in detail.

Connectivity and connections

The A9 Mega supports modern network and wireless standards. Two 2.5 Gigabit Ethernet ports (RJ45) are integrated for wired networks. Wireless connections are made via Wi-Fi 7 and Bluetooth 5.4. The USB equipment includes several connections of different generations, supplemented by USB4 with up to 40 Gbit/s. There is also a 3.5 mm audio connection, integrated microphones and a fingerprint button.

Operating system and power supply

According to the manufacturer, the system is supplied with Windows 11 Pro. Power is supplied via an external power supply unit with an input voltage range of 100-240 V AC at 50-60 Hz. The specific performance data of the power supply unit is marked as “TBD” in the PDF.
